Donjoy sanitary stainless steel lobe pumps

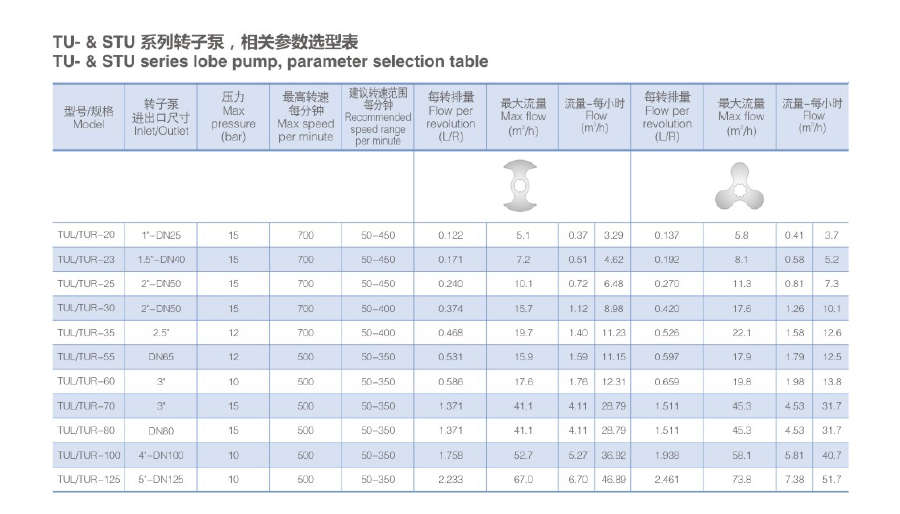

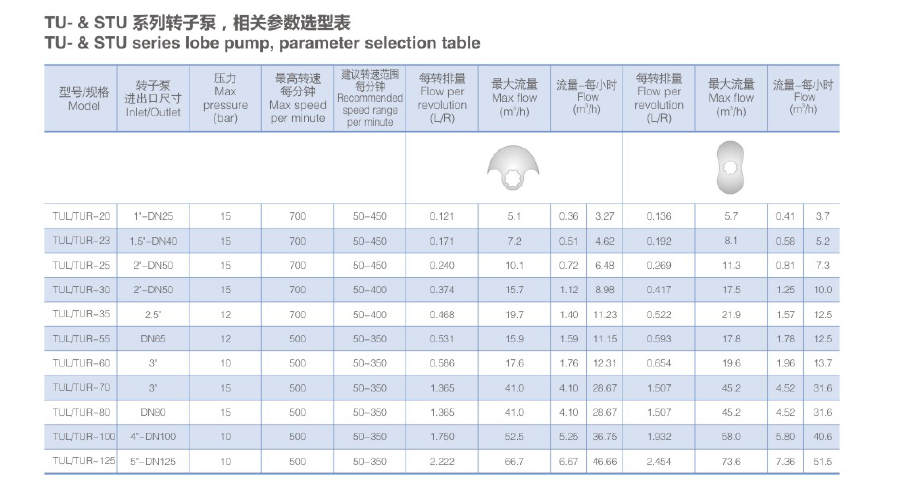

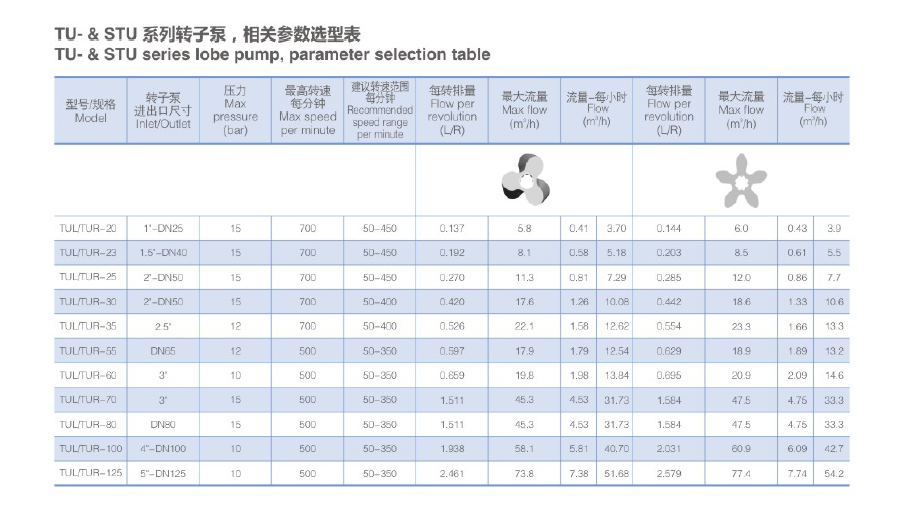

Specification
| Maximum Flow Rate | 50 m³/h |
|---|---|
| Maximum pressure | 150M(15bar) |
| Max speed | 750 rpm |
| Body Material | AISI 304 (1.4301), AISI 316L (1.4404) |
| Body Types | Horizontal Type (TUL) & Vertical Type (TUR) |
| Mechanical Seal | single seal SIC/SIC/EPDM (standard), double mechanical seal (option) |
| Motor Power Supply | 0.75KW-18.5KW wide voltage |
| Motor Brand | ABB motor, Simens Beide motor ,standard IEC |
| Max Temperature | 150℃/302°F |
| Inlet & Outlet Sizes | 1"-4"(DN25-DN100) |
| Surface treatment | Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
| Certification | US 3-A 02-11, FDA21 CFR 177.2600, CE EN809:1998/A1 2009, EN60204-1:2006/A1:2009 |
| Connection type | Tri-Clamp End, Butt Weld End, Thread, Flange |

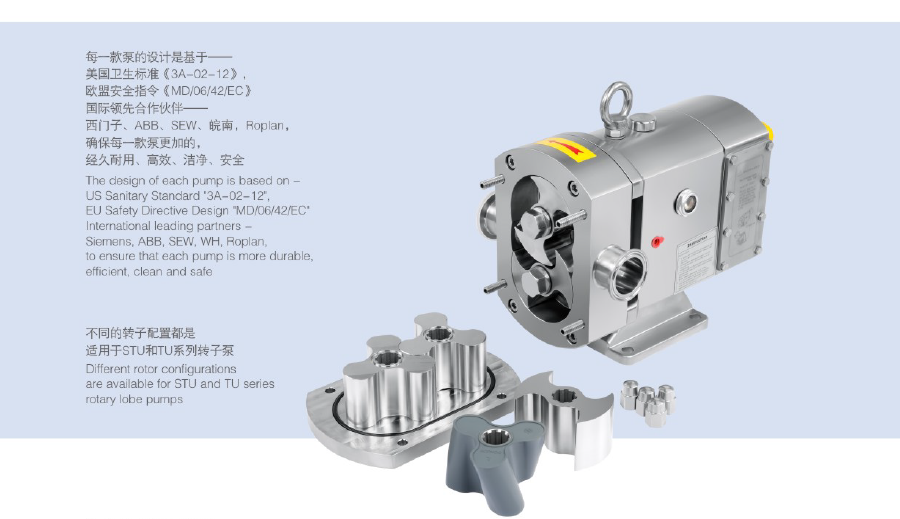

Stainless Steel Rotary Lobe Pump

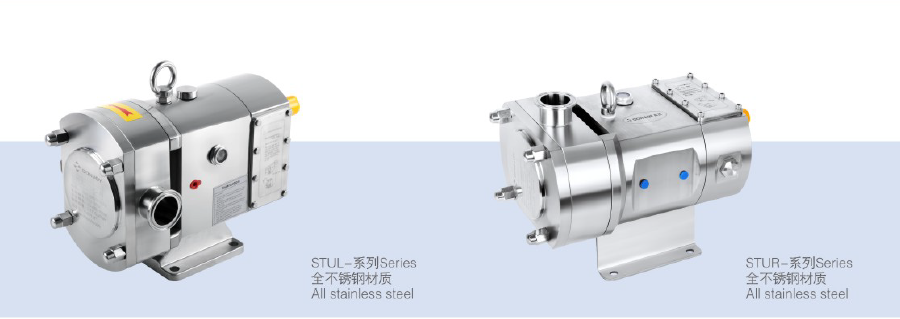

Donjoy Lobe Pump has many configurations, TUL and TUR are standard configurations, STU-series is all stainless steel construction. It’s a positive displacement lobe pump, low maintenance, and cost-effective. Sanitary design complied with US 3-A, and FDA standards, used to transfer high viscosity fluids with solid and particles such as tomato paste, yoghurt, molasses, honey, chocolate, juice, and toothpaste… The pump also can be used for the CIP&SIP system. It is intended for hygienic applications in the food processing, dairy, beverage, home care and personal care and pharmaceutical industries…
Sanitary Lobe Pump
Donjoy STU-series is an excellent choice for duties that require contamination-proof pumps to meet high standards of hygiene, and low-shear and low-pulsation operation. This 3-A approved pump handles both Cleanings in Place and Sterilization in place, and can be supplied with thorough documentation to support rigorous validation requirements.

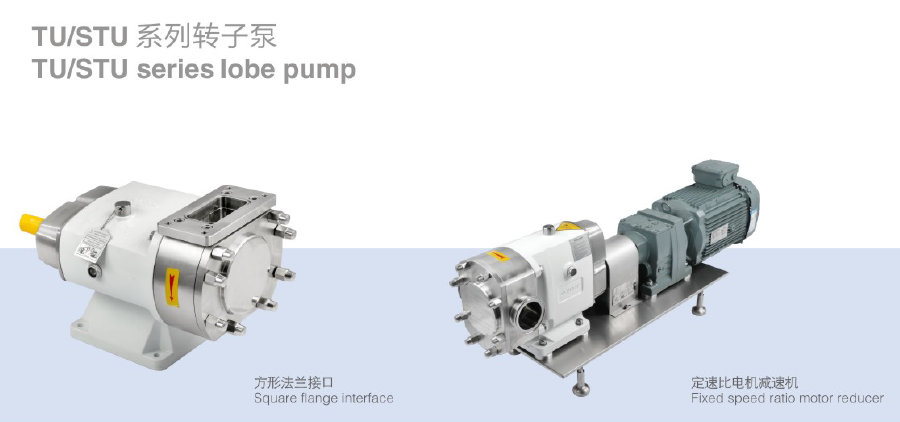

Sanitary Lobe Pump with Reducer & Motor
1) Variable–frequency motor , speed could be adjusted by frequency converter(VFD), the adjustable range is big 10-90hz. Must need an additional frequency converter, otherwise, the speed couldn’t be adjusted.
2) Fixed speed reducer and motor, it also can be adjusted by frequency converter(VFD), the default output speed is around 300rpm, but the adjustable range is small, 30-60hz.
Sanitary Rotary Lobe Pump Feature:
● High Purity, Low Noise
● High pressure to 20 bar
● Horizontal Type (TUL) & Vertical Type (TUR)

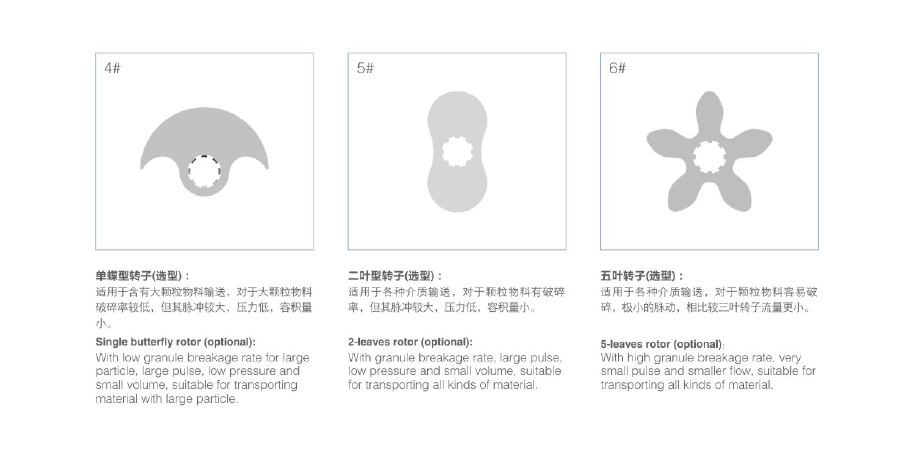

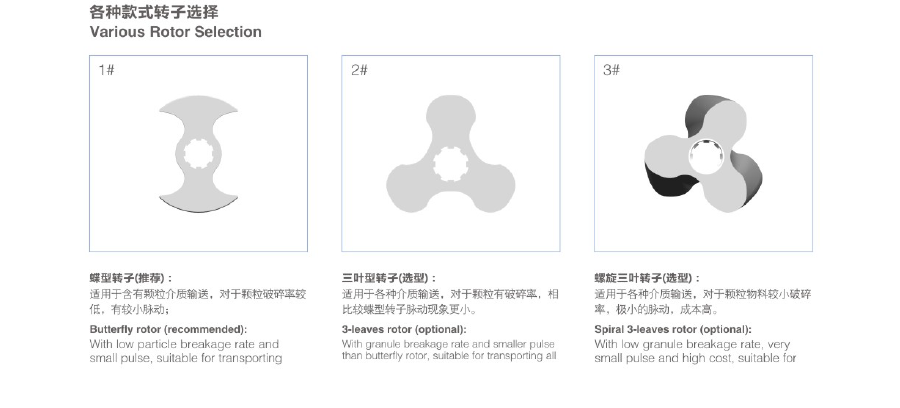

● Variety of lobe options: butterfly rotor, single rotor, bi-wing rotor, and tri-lobe rotor.
● Hygienic designed according to 3A FDA standard
●Sanitary mechanical seal, easy cleaning and maintenance
● Applied to CIP cleaning and SIP sterilization
● Can work clockwise rotation or anticlockwise rotation.

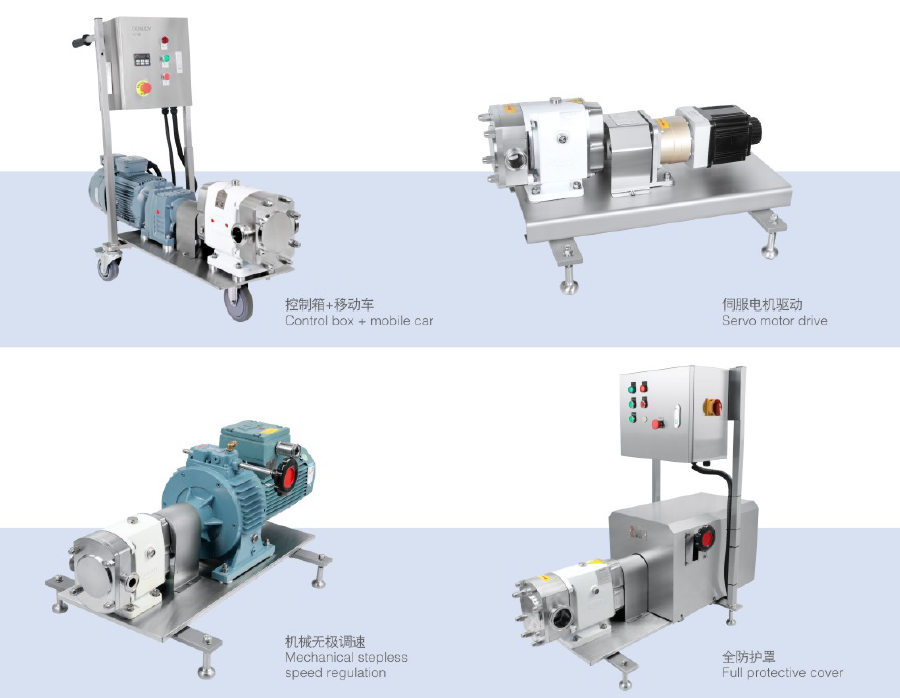

1) Manual adjustment, continuously variable transmission
2) Variable–frequency motor adjustment
3) Fixed speed output transmission
